SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Voltage: 48V
Foldable: No
Wattage: > 500w
Power Supply: lithium battery
Hign-concerned Chemical: None
Certification: ce
Range per Power: > 60 km
Style: Luxury Type
Model Number: Q20
Motor: Brushless
Rated Passenger Capacity: One Seat
Wheel Size: 20“
Max Speed: >50km/h
Frame Material: Aluminum Alloy
Brand Name: RIDSTAR
speed: 55Km/h
Expanded size: length 1710*width 850*height 1080mm
Wheelbase: 1180mm
Actual weight: 34KG
Mode: pure electric, electric assist, pedal
Front fork: hydraulic double shoulder front fork
Transmission system: Rear drive
Tire size: 20*4.0
Display: LCD
Endurance: 80km
Undervoltage protection: 39V
Overcurrent protection: 28A
Battery capacity: 15AH,20AH
Applicable people: adults, not children
Motor Power: 1000W
Brakes: Red oil brake
Light bulb: Round
Bicycle bags: Yes
Anti-theft alarm: Yes
New Ridstar-Q20 electric bike
True 1000W high speed motor + 15AH battery
True 1000W high speed motor + 20AH battery
True 2000W high speed motor + 40AH battery
2000W version with two motors.
Three versions in one:
The configuration differences have been shown through the pictures and I will advise you if you have questions.

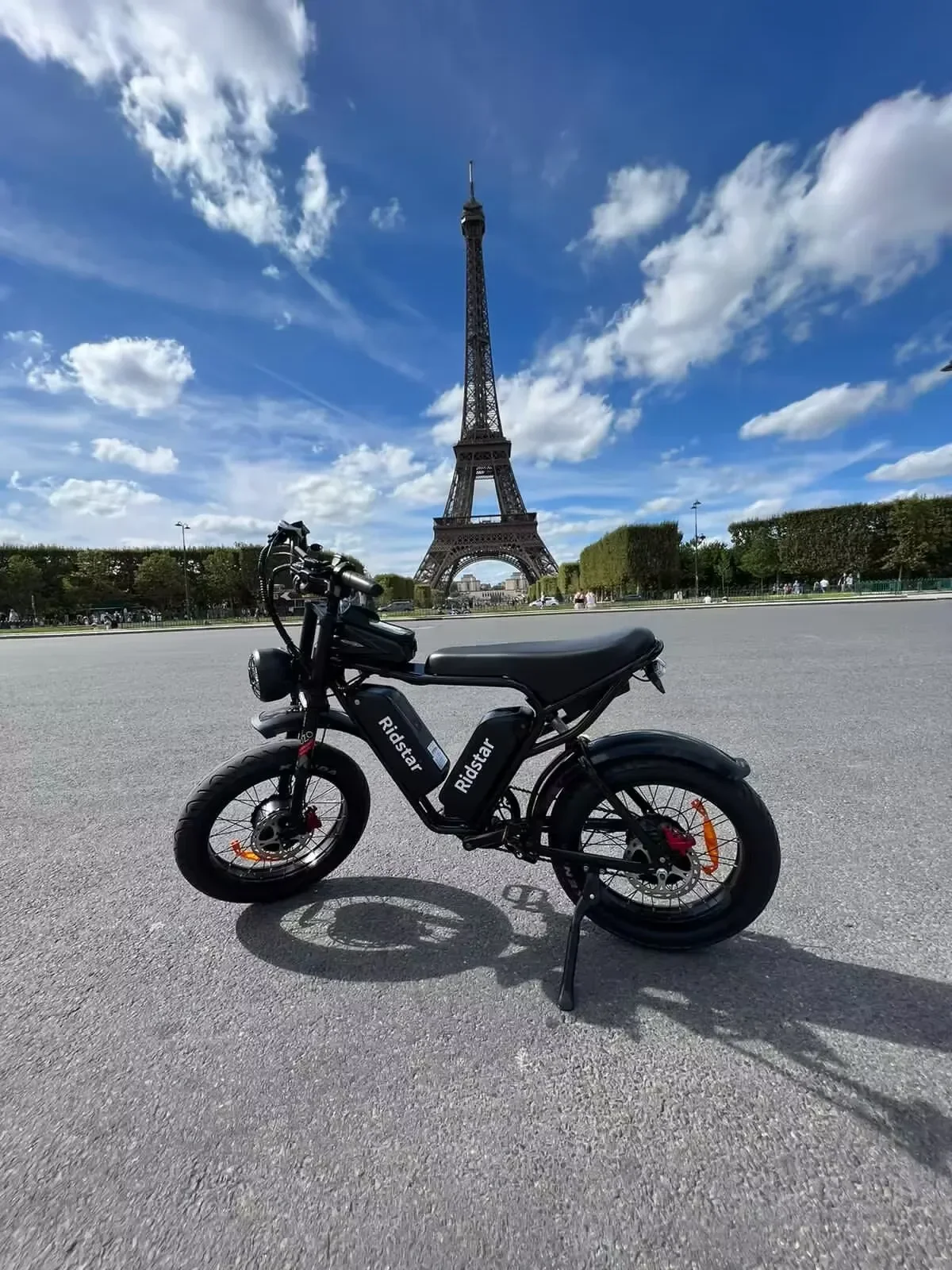

Q20 EBIKE
The Q20 e-bike is a comfortable e-bike developed by our company and suitable for people of 158cm-195cm in height. The wide seat allows you to ride with children, equipped with a front hydraulic shock absorber and a central cushioning device, equipped with the original bike waterproof bag, red oil disc brakes to highlight the fashion elements, equipped with Shimano 7-speed transmission, so that there is no obstacle ahead of you.
1. It is forbidden to use high-speed mode for beginners or the elderly and infirm.
2. It is forbidden to accelerate downhill.
3. Do not touch the motor or brake parts.
4. Check whether the folding position is fixed before driving.
Three riding modes
Electric mode: Select the 1-5 Pas assist mode and rotate the throttle to obtain speed without using pedals.
Assist mode: Select 1-5 Pas assist mode, use pedal, do not need to select throttle.
Manual mode: use the pedal directly without opening the meter.
Supension front fork
Aluminum shoulder and aluminum leg shock absorber double shoulder front fork, toothless 20" riser tube 305mm *28.6*25.4*305L*135W*3/8", disc brake, upper and lower shoulder distance 230mm, height 460mm
Lights
MD07 model, black 48V, waterproof cable supplied by customer (cable length 200/1000mm)
Line length 1200mm
MZ-04, running water lamp, line length 1300mm
Remove batteries
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Double lithium batteries
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
High speed motor
Brushless with Hall 750W*48V12G*36H*170*55km/H, spinner disc brake, motor wire L1: 250, L2: 900, motor wire is tinned
Double motor
Brushless with Hall 750W*48V12G*36H*170*55km/H, spinner disc brake, motor wire L1: 250, L2: 900, motor wire is tinned
Product Name |
Upgrade Q20 Electric Motorcycel E-bike |
Motor |
2000w |
Battery |
40ah |
Tire |
20*4.0 fat tire |
Basic parameters
Basic parameters
Expanded size: length 1710*width 850*height 1080mm
Wheelbase: 1180mm
Actual weight: 34kg
Mode: pure electric, electric assist, pedal
Front fork: hydraulic front fork
Braking system:Front and rear red oil disc brakes
Transmission system: rear drive
Tire size: 20*4.0
Display: LCD
Maximum speed ≤50km/h
Endurance 80km
Slope <35°
Load weight≤150kg
Motor parameters: 48v1000W
Motor type: DC brushless high-speed motor
Rated voltage 48V
Main technical parameters of charging
Output power 3A
Charging time 6H
Lithium battery parameters
Battery type: 18650 lithium battery
Capacity :20AH
The main parameters of the controller
Undervoltage protection: 39V
Overcurrent protection: 28A
Packing list
Electric bicycle*1
Battery *1
Bicycle bags*1
Fenders*2
Multi-function tool*1
round headlight*1
Charger*1
Pedal*1
-
Rated Passenger Capacity
One Seat
-
-
Frame Material
Aluminum Alloy
