SPECIFICATIONS

Brand Name: EVFITTING

Hign-concerned Chemical: None

Origin: Mainland China

Type: Other

Material: ABS

Color: Black

Size: 167*90*60mm

Net Weight: 0.45kg

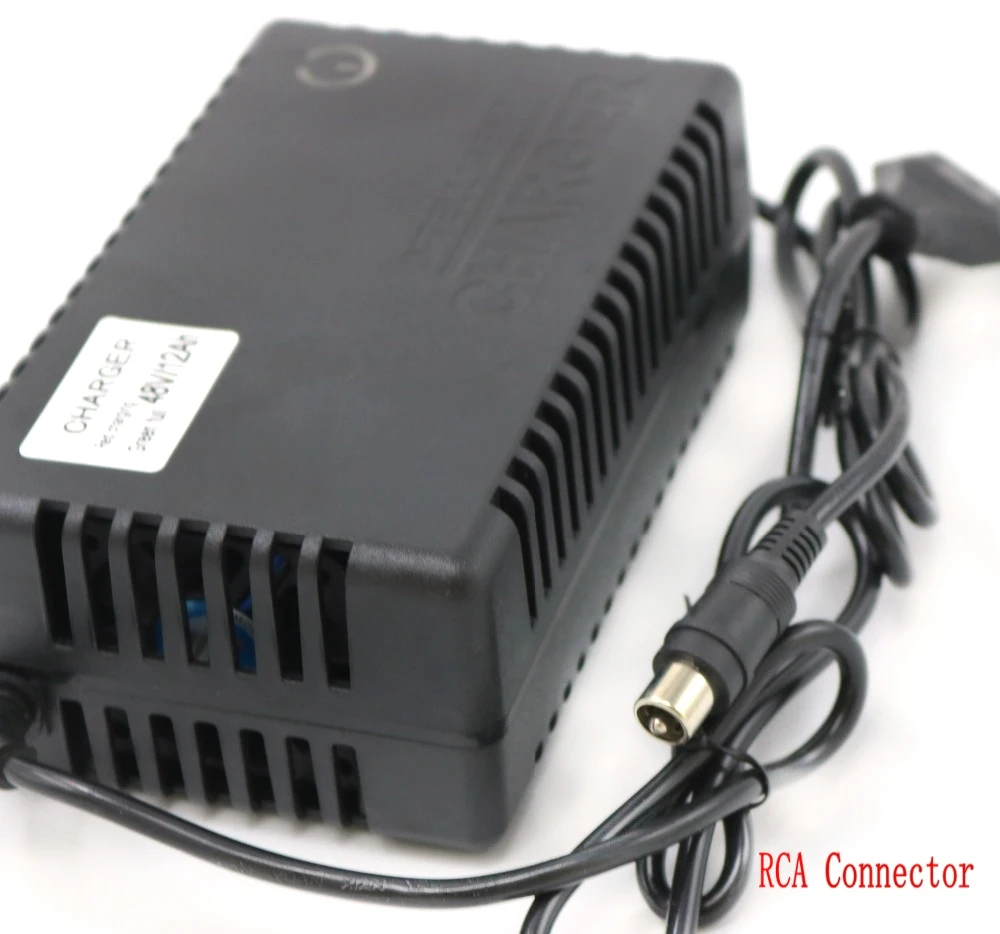

48V 17-20Ah 2.5A Electric Bicycle Charger/Lead Acid Battery Charger

Input: 220VAC 50HZ
Output: 48VDC 2.5Amp
3-stage charging mode:

CC/CV, floating charging

.3-stages charging mode

 1.Constant current

    2.5A

 2.Constant voltage

    59V+-0.5Vdc;

 3.Floating voltage

    55.2Vdc;

.Led indicate charging status:

  Red---in charging; Green---fully charged

Thers is marked 48V 20ah on the charger casing, but this charger is suitable for all the 17-20ah lead acid, agm, sla batteries, Li-ion/LiFePO4 batteries cannot use this charger, please pay more attention to this, be careful, thanks!
